Connect to RedHat OpenShift Kubernetes Service (ROKS)

Claiming the Cluster

  1. Use the list provided by the instructor to find the name of your Kubernetes cluster.

  2. Make sure that you are in the correct account#.

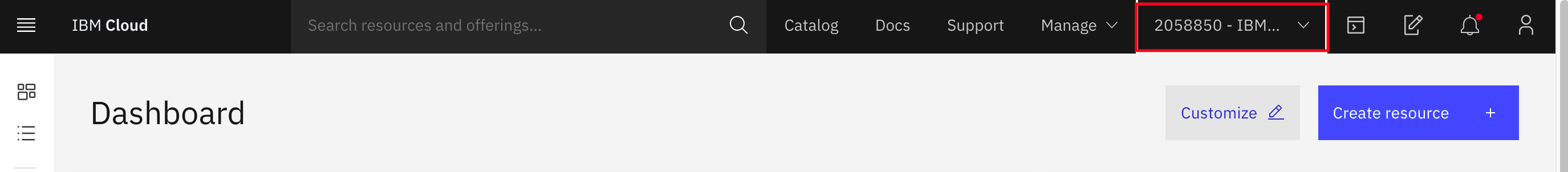

    Account Number

    Note: you may not have access to your OpenShift cluster if you are not in the right account#.

  3. Open the Kubernetes cluster link to view all the availbale clusters: https://cloud.ibm.com/kubernetes/clusters?platformType=openshift

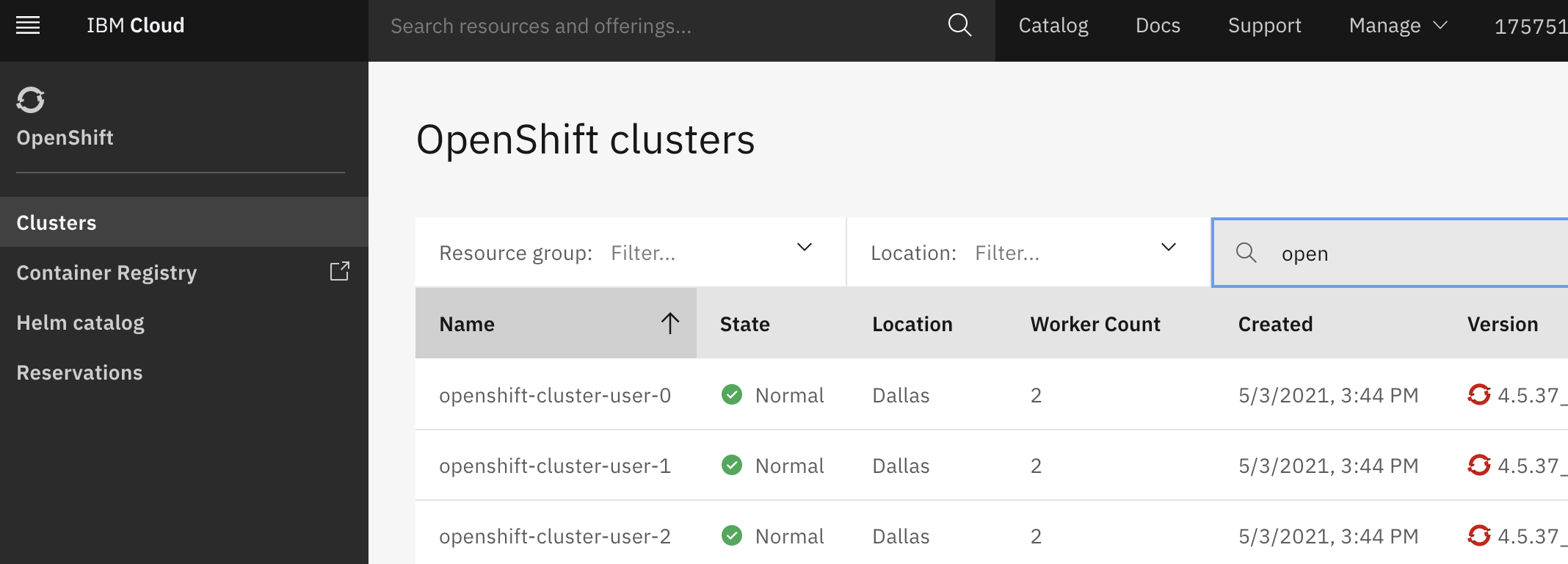

    Cluster List

  4. Locate and click on the cluster that is assigned to you based on step 1.

Login to OpenShift

  1. Click OpenShift web console button on the top.

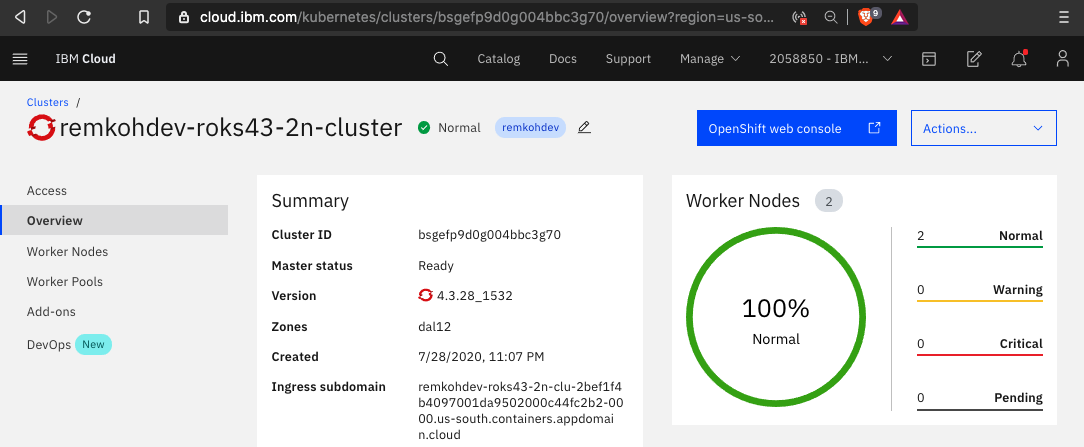

    IBM Cloud OpenShift Web Console

  2. Click on your username in the upper right and select Copy Login Command option.

    Terminal Button

  3. Click the Display Token link.

    OpenShift Display Token

  4. Copy the contents of the field Log in with this token to the clipboard. It provides a login command with a valid token for your username.

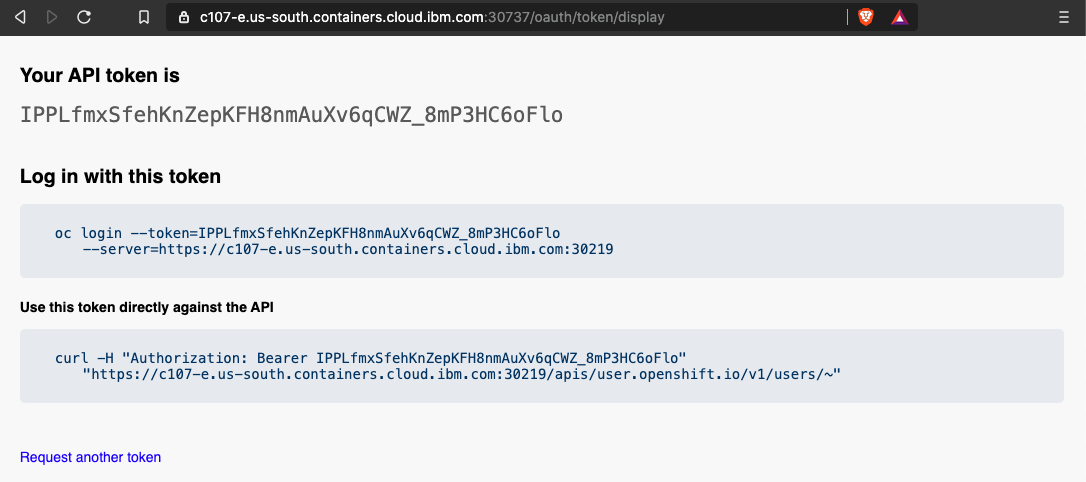

    OpenShift oc login

  5. Go to the your shell terminal.

  6. Paste the oc login command in the IBM Cloud Shell terminal and run it.

    Output of the login command:

    $ oc login --token=nAH06HFM04vlTNNHor3QJ_CMySawfSsV4CNUlwoMUKM --server=https://c115-e.us-south.containers.cloud.ibm.com:30979
Logged into "https://c115-e.us-south.containers.cloud.ibm.com:30979" as "IAM#rojanjose@gmail.com" using the token provided.

You have access to 62 projects, the list has been suppressed. You can list all projects with ' projects'

Using project "default".
Welcome! See 'oc help' to get started.

  7. Verify you connect to the right cluster.

    oc get all
oc get nodes -o wide

    Output:

    $ oc get all
NAME                          TYPE           CLUSTER-IP       EXTERNAL-IP                            PORT(S)   AGE
service/kubernetes            ClusterIP      172.21.0.1       <none>                                 443/TCP   25h
service/openshift             ExternalName   <none>           kubernetes.default.svc.cluster.local   <none>    25h
service/openshift-apiserver   ClusterIP      172.21.204.216   <none>                                 443/TCP   25h

$ oc get nodes -o wide
NAME             STATUS   ROLES           AGE   VERSION           INTERNAL-IP      EXTERNAL-IP    OS-IMAGE   KERNEL-VERSION                CONTAINER-RUNTIME
10.171.109.110   Ready    master,worker   25h   v1.18.3+cdb0358   10.171.109.110   169.46.60.55   Red Hat    3.10.0-1160.24.1.el7.x86_64   cri-o://1.18.4-11.rhaos4.5.gitfa57051.el7
10.171.109.113   Ready    master,worker   25h   v1.18.3+cdb0358   10.171.109.113   169.46.60.57   Red Hat    3.10.0-1160.24.1.el7.x86_64   cri-o://1.18.4-11.rhaos4.5.gitfa57051.el7

  8. Optionally, for convenience, set an environment variable for your cluster name.

    export CLUSTER_NAME=<your_cluster_name>

    Output:

    $ export CLUSTER_NAME=openshift-cluster-user-0
